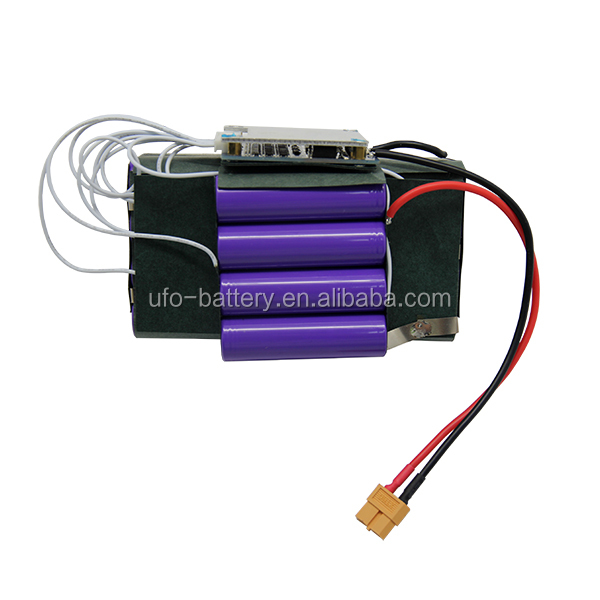

Custom 4.4Ah 36V Lithium Battery Pack for Segway Self Balancing Scooter,Electric scooter

FOB Reference Price:Get Latest Price
US $29.9-32.25 / Packs | 200 Pack/Packs (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
UFO / OEM
Model Number:
18650-10S2P
Composed Type:
Assembled Packs
Type:
Li-Ion
Components:
Lithium Polymer
Size:
60*85*135mm
Voltage:
36V
Weight:
Approx. 970g
Nominal Capacity:
4400mAh or 4.4Ah, 158.4Wh
Application:
Self Balancing Scooter
Battery Style:
Lithium Battery
Nominal Voltage:
36v
Battery Size:
60*85*135mm
Battery Application:
Self Balancing Scooter
Certificate:
ISO, CE, UL, MSDS, UN38.3
Accessories:
Connector, wires, PCM
Battery cyclelife:
LiFePO4 2000 cycles, Li-Po 500 cycles
Delivery time:
20 days
Payment:
T/T Western Union Paypal
Supply Ability
Supply Ability:
1000000 Pack/Packs per Day
Packaging & Delivery
Packaging Details
Standard package: 2 pcs in inner box with fire prevention label by cartons. Special case with special pacakge.
Port
HK or Shenzhen
Lead Time :
20 days

Custom 4.4Ah 36V Lithium Battery Pack for Segway Self Balancing Scooter,Electric scooter



Product Description




ModelNominal Capacity(mAh)Nominal Voltage (V)Charge Cut-off Voltage (V)Discharge Cut-off Voltage (V)Continous Discharging Current   (mAh)Max. Burst Discharge Current (mAh)Std. Charging Time (hours)Rapid Charging Time (hours)Cell Resistance()Weight (g)
U18650-10S2P4.4Ah36V

43.2V

26V4.4Ah30Ah6~7.02~3.0<170mΩN/A



Voltage : peak - 42V, working - 36V

Capacity: 4.4Ah

Power: 158W

Cut-off voltage: 26V

Max. discharging current: 30amp

Max Continuous Discharging Amperage: 20 Amps

Rated Discharging Amperage: 15 Amps

Charging Current: <5 Amps

Charging Voltage: 43.2 Volts

Dimension: 60*80*135mm

Net Weight:970g

Lifecycle: > 85% capacity after 1000 cycles.

Lifecycle of single cell: >85% capacity after 1500 cycles, > 70% capacity after 3000 cycles. (<1C discharge rate and <1C charge rate)

Run time: 15-20km

  • Excellent safety performance
  • Excellent storage performance and low self-discharge rate
  • Short circuit testing passed
  • Overcharge testing passed
  • Over discharge testing passed
  • 150C thermal shock test passed
  • 1.2m drop testing passed
  • One year warranty

Capacity : from 40mAh to 5350mAh; Voltage from 3.7v to 44.4v

Constant Discharge Rate: 1C-15C\20C\25C\35C\45C\50C\55C\65C

One-stop Service for overall solution

ODM/OEM SERVICE > BATTERY CELL > BATTERY PACK > PCM/PCBA > BMS > BATTERY CHARGERS



Place 1pcs Order,  You Will Get



36V 4.4Ah battery/ cell x 1

Accessories: 1 Connectors for the battery.

Size:  60*85*135mm

Datasheet x 1

Complete Package x 1

One year guarantee from the date buying the battery.



How to Place an Order?



Send Inquiry

♥Get Datasheet

♥Approve Datasheet

♥Place Sample Order

♥Place Bulk Order

♥30-35Days Delivery Time

♥Get Battery

♥Enjoy 1 years guarrantee

♥Feedback Battery Performance If you Like!

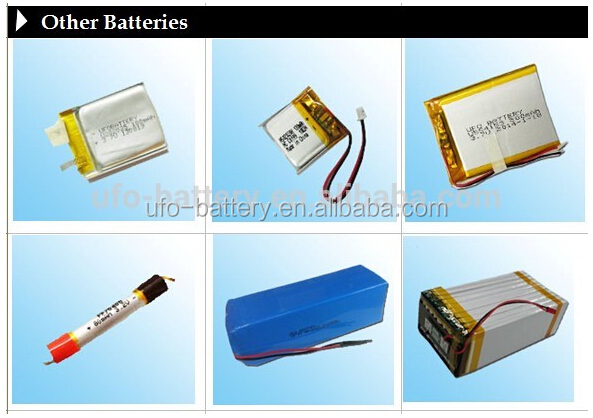

other battery.jpg

Advantages:



1. Fast charging.

2. Over 2,000 battery models with different size and capacity.
3. Top quality with only A grade.
4. No memory effect
5. High energy density
6. Long cycle life
7. Safe performance



Applications:

Lithium Polymer (LiPo) battery, 1C-15C\20C\25C\35C\45C\50C\55C\65C lipo battery are widely applied in GPS battery,

Portable DVD battery, PDA battery, Cellular phone battery, mobile phone battery, notebook battery, earphone battery, blue tooth battery, Medical devices battery, MP3 battery,MP4 battery,RC toys battery, RC helicopter battery, Wireless transmitter battery, Wireless receiver battery, RC car battery, RC boat battery, RC airsoft gun battery, powerdriven tools & toy battery, camcorder battery, digital camera battery, head set stereo battery, handy terminal battery, mini disc player battery, E-cigarette battery,E-bike battery,E-scooter battery,EV battery,UPS batteryetc.





UFO BATTERY CETIFICATES



.jpg



Company Information



Brief introduction - UFO Source Energy



UFO Energy is one of the best battery manufacturing in South China dedicated to lithium-ion polymer battery product design, production and marketing, which widely used in related products of portable power supply, such as mobile, tablet, GPS, e-bike, RC helicopter, vacuum, UPS, etc.

We aimed to be an expansive product offering of worldwide mainly to Korea, North America and Europe associate with reputation company like EMERSON, HP, and Western Digital. As a battery manufacturer with a product defect rate of less than 0.02 percent, you’ll understand why 90 percent of our new clients place repeats orders with us.



HK Fair

HK FAIR.jpg





   MAIN COOPERATING CLIENTS






FACTORY TOUR








Packaging & Shipping

Shipping:

1. Sample shipment is 15 days with mass order 20-35 workdays after receipt of payment.

2. UPS/FEDEX/DHL and so on for sample delivery. Other shipping terms can also be arranged according to specific requirements.

Payment:

1. T/T , PAYPAL , Western Union, Cash is acceptable.
2. If you prefer other payment terms,please contact us.

Replacement Policy:

1. 1 years warranty for cells.
2. If items is defective , please notify us within 3 days of delivery.
3. Items must be returned in their original condition to qualify for a replacement.
4. The buyer is responsible for all the shipping cost incurred.
